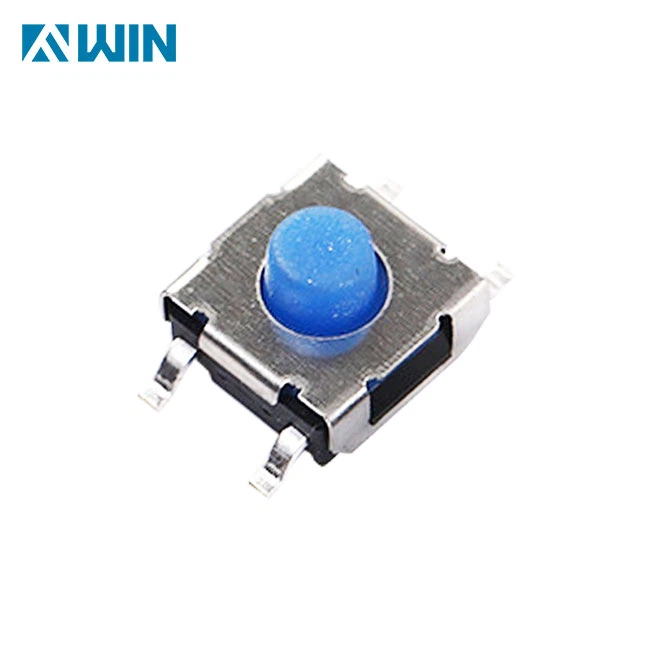

सिलिकॉन पनरोक चातुर्य बटन स्विच

यह स्पर्श स्विच लंबाई 6.2 मिमी और चौड़ाई 6.3 मिमी के साथ आता है, इसमें विभिन्न ऊंचाई विकल्प होते हैं, सिलिकॉन रबर बटन इसे शांत प्रेस प्रतिक्रिया देता है, मिनी आकार और अनुकूलित ऊंचाई उत्पाद डिजाइन के लिए अधिक विकल्प प्रदान करता है।

जांच भेजें

विवरण

जलरोधक चातुर्य स्विच का कार्य और उपयोग

1. The material choice,with the time increasing,the waterproof tact switch's material also would be oxidized and had not the waterproof protection as before,an then select the silicone rubber material is perfect option,whatever high temperature,damp cold environment,the waterproof tact switch can remain the waterproof property as before,and it will enhance the life expectancy of product.

2. The structure of waterproof tact switch design.the more high-end product,the

अधिक चतुर डिजाइन। अंतरिक्ष और सामग्री को बचाने के लिए जलरोधक स्पर्श बटन डिजाइन।

3. The hand feeling of waterproof silicone rubber tactile switch,it determines the sensitive of tactile button switch,the less reaction time will lead to more prior performance.

पर्यावरण प्रतिरोध:

ना।	आइटम	Test conditions	आवश्यकताएं
2.4.1	Resistance to low temperature	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1 h. Before measurements are made: 1)Temperature:-30±2 degree 2)Time: 96h	Contact resistance: 200mΩ MAX Insulation resistance: 50MΩ MIN Voltage proof: No dielectric breakdown shall occur. Operating characteristic variety Within ±10 percent of specified value . No remarkable corrosion shall be recognized in metal part.
2.4.2	Heat resistance	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h before measurements are made: 1)Temperature:80±2 degree 2)Time: 96h
2.4.3	नमी प्रतिरोध	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h before measurements are made: 1)Temperature: 60±2 degree 2)Relative humidity: 90 to 95 percent 3) समय: 96 घंटे
2.4.4	Change of तापमान	After 5 cycles of following conditions, the sample shall be allowed to stand under normal temperature and humidity conditions for 1h and measurements shall be made. During the test waterdrops shall be removed. Temperature/ degree Time/hour1 cycle-10±22-1065165±2265-101
2.4.5	सल्फरेशन प्रतिरोध	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h before measurements are made: 1)H2S gas concentrations: 3ppm±1ppm 2) समय: 48 घंटे 3)Temperature: 40±2 degree (9095 percent RH)
2.4.6	Salt mist	The switch shall be checked after following test: 1)Temperature: 35 degree ±2 degree 2)Salt solution : 5±1 percent (solids by mass) 3)Time: 4±1 hour After test,salt deposit shall be removed by running water.
